What is Qubit?

A single qubit is represented by

$$ |\psi \rangle = \alpha |0\rangle + \beta|1\rangle$$

Or,

$$\vert\psi\rangle = \sqrt{1-p}\vert0\rangle + e^{i \phi} \sqrt{p} \vert1\rangle$$

Bloch Sphere

Lets start to make fun with single qubit operation. A quantum circuit with single qubit can be created with following code.

qc = QuantumCircuit(1)

This circuit initiate qubit at \( |0 \rangle \) state. This qubit can be represented by a Bloch sphere as shown below. Lets print the vector representing this qubit and Plot the Bloch sphere.

print(getStateVector(qc))
getBlochSphere(qc)

[1.+0.j 0.+0.j]

png

Lets apply Hadamard gate. It will rotate the qubit form \(|0\rangle\) state to the direction of X-axix. i.e. \( \frac{1}{2}(|0 \rangle + | 1 \rangle)\). We can also see the corresponding circuit diagram.

qc.h(0)
style = {'backgroundcolor': 'lavender'}
qc.draw(output='mpl', style = style)

png

Lets print the vector representing this qubit and plot the Bloch sphere.

print(getStateVector(qc))
getBlochSphere(qc)

[0.70710678+0.j 0.70710678+0.j]

png

Now, our qubit is along the direction of X-axis. Lets try to rotate it about z-axis with \( \frac{\pi}{4} \) angle.

qc.u3(0,0,np.pi/4,0)
style = {'backgroundcolor': 'lavender'}
qc.draw(output='mpl', style = style)

png

print(getStateVector(qc))
getBlochSphere(qc)

[0.70710678+0.j  0.5       +0.5j]

png

Now, you got the idea! Lets rotate to complete \( 2\pi \) rotation by adding 7 more u3 gates and return this qubit back to it's initial position by acting final H gate.

for i in range(7):
    qc.u3(0,0,np.pi/4,0)
qc.h(0)
style = {'backgroundcolor': 'lavender'}
qc.draw(output='mpl', style = style)

png

print(getStateVector(qc))
getBlochSphere(qc)

[1.+0.j 0.+0.j]

png

Yahoo....! Now, qubit is back to original position. This can be shown in animation below.

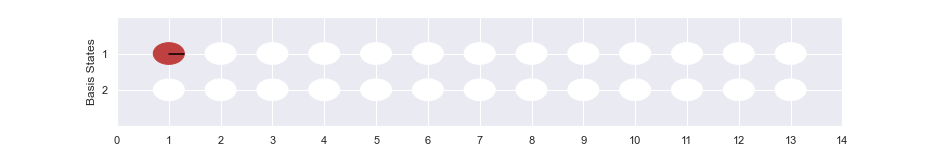

What happens to the two complex cofficient of the qubit as it passes through the sequence of these gates? We can calculate individual phase angle and magnitude of the complex cofficient and visualize them as shown below.
